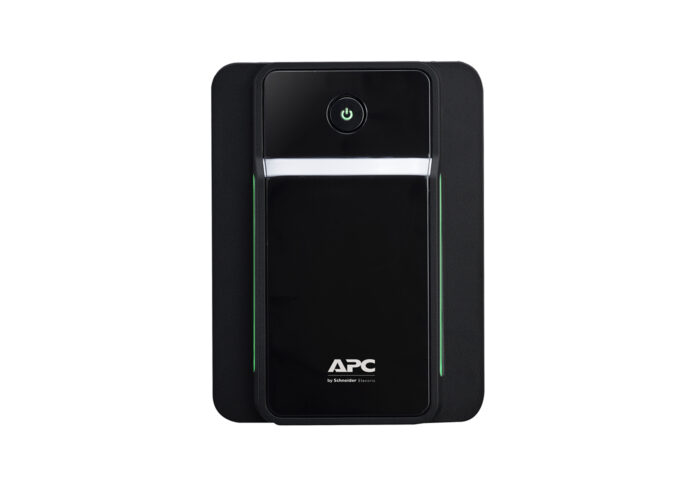

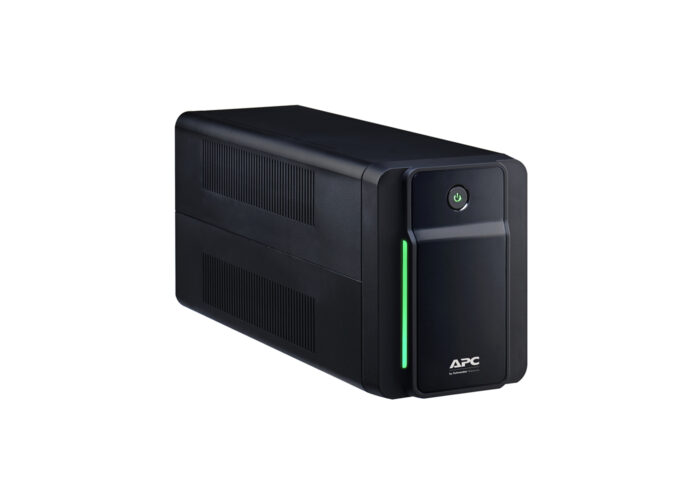

APC Back-UPS BX750MI-GR
P/N: BX750MI-GR კოდი: 48773დამატებითი ინფორმაცია
| წონა | 5.4 კგ |
|---|---|
| ზომები | 35.5 × 12 × 16 სმ |
| მწარმოებელი | APC |
| UPS-ის ტიპი (Topology) | Line interactive |
| UPS-ის ფორმ ფაქტორი | Tower |
| UPS-ის სიმძლავრე | 0.75kVA |
| UPS-ის სიმძლავრე (Input:Output phase) | 1:1 ფაზა |
| Power, W | 410 |
| Signal type when running on battery | Stepwise sinusoid approximation |
| Height, units | No |
| Rack mounting ears included | No |
| Rack Mount Rails Included | No |
| Possible wall mount | No |
| Rated input voltage, V | 220-240 |
| Input voltage range, V | 140-300 |
| Input frequency range, Hz | 50/60 ±5 |
| Rated output voltage, V | 230 |
| Output voltage range, V | 230 ±10% |
| Output frequency range, Hz | 5, 50/60 ±0 |
| Type of power output connectors | Schuko CEE 7/3 |
| Number of power output connectors | 4 |
| Availability of groups of controlled connectors | No |
| Number of groups of controlled connectors | No |
| Battery type | Lead Acid |
| Nominal battery capacity, Vah | 108 |
| Built-in battery voltage, V | 12 |
| Capacity of the built-in battery, Ah | 9 |
| Number of built-in batteries, pcs. | 1 |
| Battery recharge time up to 90%, hours | 8 |
| Autonomous operation time at 50% load, min | 7 |
| Autonomous operation time at 75% load, min | 3 |
| Autonomous operation time at 100% load | 1 |
| Replaceable battery cartridge | -0 |
| User replacement of batteries | No |
| Possible connecting additional batteries | No |
| Article number of the additional external battery | No |
| Max. number of additional batteries | No |
| Sound indicators | Yes |
| LED indicators | Yes |
| Display (monitoring) | No |
| Display (UPS setup and monitoring) | No |
| Data line protection | Yes |
| Poss. connection to PC via USB | Yes |
| Poss. connection to PC via RS-232 | No |
| USB type-A interface for charging mobile electronics | No |
| USB type-C interface for charging mobile electronics | No |
| Smart-Slot for connecting expansion cards (SNMP,...) | No |
| Part number of a suitable network card | No |
| Network card included | No |
| Temperature sensor included | No |
| Battery self-diagnosis | Yes |
| Cold start | Yes |
| Hot-swappable batteries | No |
| Dry contacts (Emergency Power Off function) | No |
| Ability to operate in N+1 redundancy mode | No |
| Switching time, ms | 6-10 |
| Noise level, dB | 40 |
| Pulse energy absorption, J | 273 |
| Mains power cable (included) | Yes |
| UPS warranty, years | 2 |
| Battery warranty, years | 2 |
